Sh Series Superheated Steam Trap Valve

manufacturer: Shanghai Fengqi Industry Development Co., Ltd.
Eml: sales@fengqi.sh.cn

Tel: 86 (21) 3652 8716
Mob: (86) 138 1635 6498

product drawing

Sh series superheated steam trap valves
Sh series superheated steam trap valves
Sh series superheated steam trap valve
Sh series superheated steam trap valve

The largest pressure:62kg/cm2, The largest displacement 5,134kg/h sh series bimetalic steam trap valve is the ideal trap valve for superheated or low-loading working conditions, the useful life is longer than other types of trap valve.

Advantage

well-knit
light in weight
applying to high-temperature
applying to high-pressure
longer useful life in superheated conditions
easy to maintain online
possessing fail-open function
water-attack-resistance
possessing many kinds of adapter and connecting specification
the internal is installed with filter
large start-up loading
silent drainage
no sensitive to the length of the connecting pipe
corrosion-resistance material of stainless steel(SH-900 type)
SH Series bimeralic trap valve can start drainage with large-loading at superheated conditions. Unique bimetalic components can rigorly shut off the trap valve before the superheated steam come into the trap, preventing lossing steam. SH Series are installed with Ti Disc and seat, it can ensure long useful life under superheated steam system scurviness working conditions.

Technical features

The trap is made of investment casting carbon steel(SH600 TYPE) and investment casting stainless steel(SH900TYPE), internal stainless steel filter can be maintained online. Steam trap is installed with laminate Ni-Cr bimetal mechanism and Ti Disc and seat, can be applicable to low-loading superheated working condition within authorised pressure range.

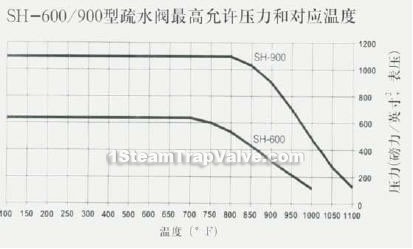

The highest operating conditions

The highest permiting pressure(container design):
SH一600TYPE:BELOW 400℃下,41kg/cm2,GAGE PRESSURE
SH一900TYPE :BELOW 482℃下,62kg/cm2,GAGE PRESSURE
The highwst operating pressure :
SH一600TYPR:600Psi (41kg/cm2), GAGE PRESSURE
SH一900TYPE:900Psi (62kg/cm2), GAGE PRESSURE
Proposal lowest working pressure:
SH一600TYPE:200Psi,(14kg/cm2),GAGE PRESSURE
SH一900TYPE:200Psi,(14kg/cm2),GAGE PRESSURE

Connecting pipe

SH-600type: American Standard Taper-thread Pipe(NPT), British Standard Thread pipe (BSPT), socket weld or flange connection
SH-900type: socket welding, buttwelding or flange connection

Material

SH—600 type:
body and bonnet: ASTM A216 WCB
Disc and Seat: Ti
mechanism: Ni-Cr and Stainless Steel
filter: stainless steel
SH一900type:
body and bonnet: ASTM A351 CF8M
Disc and Seat: Ti
mechanism: Ni-Cr and Stainless Steel
filter: stainless steel

Dimensions & constructral diagram

Sh series superheated steam trap valve constructral diagram(pic1)
Sh series superheated steam trap valve constructral diagram(pic1)
Sh series superheated steam trap valve constructral diagram(pic2)
Sh series superheated steam trap valve constructral diagram(pic2)

Structural Dimensions

type SH-600 SH-900
connecting pipe inch mm inch mm
  1/2,3/4 15,20 1/2,3/4,1 15,20,25
”B” height 3-1/2 9l 4-1/2 115
space between “C”connecting pipe end face and people 4-5/8 117 6-1/4 158
space between D connecting pipe centerline and trap top 2-13/16 72 3-3/4 95
"E" width 3-1/8 79 3-3/4 95
*”BB”  --  -- 11—1/8* 282*
weight,Pound(kg) 5(2.3) 10(4.4)

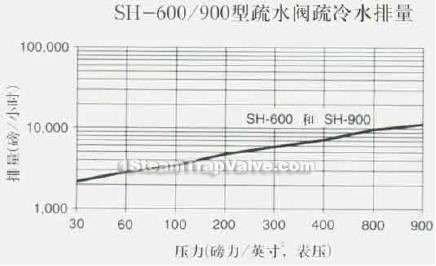

Displacement chart

Model-selection

Main rule of selection:
1. loading of condensed water kg/h(confirming displacement ); 2. the selecting safety factor generally is between two and three;
3. Pressure difference MPa; 4. the max. permitting pressure MPa。
Order:
1、Supplying model ;2、Supplying connecting dimensions(if flange-connection is required, please supply the detail flange type ).
