Freely Semi-ball-float-type Steam Trap Valve

manufacturer: Shanghai Fengqi Industry Development Co., Ltd.
Eml: sales@fengqi.sh.cn

Tel: 86 (21) 3652 8716
Mob: (86) 138 1635 6498

product drawing

Freely semi-ball-float-type steam trap valves
Freely semi-ball-float-type steam trap valves
Freely semi-ball-float-type steam trap valve
Freely semi-ball-float-type steam trap valve

Structure Characteristics and Working Principle

When the trap does not start working, freely semi-ball-float sinks in the emission tube, when the trap is in the drainage state, steam go into the body through the filter net and emission tube, as the steam volume increased to a certain degree, buoyancy causes semi-float ball upward, under the effect of steam pressure, the semi-float ball lean against trap spray nozzle to close it, preventing steam escaping. When a large quantity of condensation water go into the body, steam volume inside the semi-float ball reduces, the semi-float ball fall off under the effect of its own gravity, then the semi-float ball break away from the trap spray nozzle, completing a working cycle. So movements in cycles can achieve the purpose of automaticly steam drain prevention.

Dimensions & constructral diagram

Freely semi-ball-float-type steam trap valve constructral diagram
Freely semi-ball-float-type steam trap valve constructral diagram

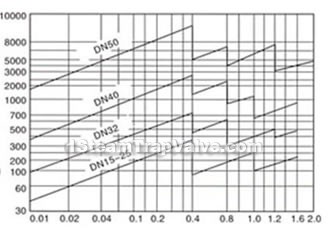

Flow Rate Chart

Main Performance Specification

Nominal Pressure PN(MPa) Test Pressure PS(MPa) Max. Working Pressure DMO (MPa) Max. Working Temperature TMO (℃) Applicable Medium Leakage Rate % Max. Back Stress Rate
1.6 2.4 1.6 220 Steam Condensation water ≤0.5 85

Main External and Connecting Dimensions

Type DN(mm) Nominal Diameter L H H1 Type DN(mm) Nominal Diameter L H D D1 D2 b f Z-фd
CS15H- 16/25/40C 15 155 142 80 CS45H- 16/25/40C 15 210 142 95 65 45 14 2 4-ф14
20 155 142 80 20 210 142 105 75 55 14 2 4-ф14
25 155 142 80 25 230 142 115 85 65 14 2 4-ф14
32 180 200 105 32 270 200 135 100 78 16 2 4-ф18
40 180 200 105 40 270 200 145 110 85 16 3 4-ф18
50 180 200 105 50 270 200 160 125 100 16 3 4-ф18
