Lever Ball-floa0074-type Steam Trap Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
FT14H
FT44H
SUNA23/26H
FT43H
Function and features
Lever Ball-float-type Trap Valve is widely used for industrial steam-heating devices, such as various of huge heat exchange, drier, jacketedkettle and so on.Especially it is applicable to the working occasion with extra large displacement of condensed water.
This extra large displacement type steam trap valve does not need to adjust and replace internal components within the whole working pressure range, that is to say it can completely eliminate a great deal of condensed water. The supercooling degree of drainage can reach 0℃, especially suitable for the working occasion with a large quantity of condensed water.

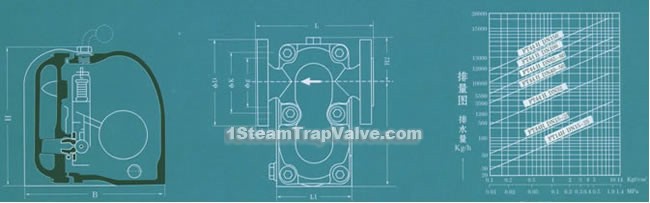

Flow rate chart
(pic1)
(pic2)
Technical parameter table
| Production Type | DN Nominal Diamete | Type of Connection | Applicable Pressure MPa | Temperature℃ | （mm） External Dimensions | |||
| L | H1 | H2 | W | |||||
| SFT14-16 | 15-20 | Thread | 0.01～1.6 | 250 | 125 | 55 | 55 | 155 |
| SFT14-16 | 15-25 | Thread | 0.01～1.6 | 250 | 190 | 120 | 80 | 140 |
| SFT44-16 SFT43 SFT46 | 15-20 15-20 25 | Flange | 0.01～1.6 | 350 | 195 215 | 85 | 115 | 110 |
| 32-50 65-80 | Flange | 0.01～1.6 | 350 | 230 270 | 175 218 | 110 125 | 190 220 | |
| SUNA23/26H | 15-20 25 32-50 | Flange | 0.01～4.0 | 350 | 195 215 230 | 60 125 | 90 145 | |
Material table of main parts
| Name of Part | Material |
| Body,Bonnet | WCB、HT250、Stainless Steel |
| Seat,Core | Stainless Steel |
| Ball Float | Stainless Steel |
| Controling Shelf | Stainless Steel |
| Thermosensitive Elements | Hastelloyalloy |
