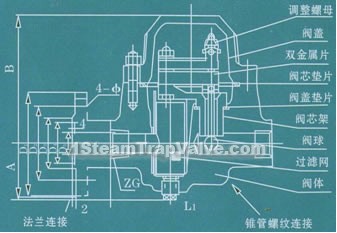

Structural drawing»

You are here:Home > Products >Bimetalic Type Steam Trap Valve

Bimetalic Type Steam Trap Valve

manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com

Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072(WeChat Same Account)

product drawing

SF-1/2/3/SF-1/2/3-GF
SF-1/2/3/SF-1/2/3-GF
TSF-1/2/3/TSF-1/2/3-GF
TSF-1/2/3/TSF-1/2/3-GF

Four features of the general-type bimetalic-type trap valve

2.1 Exhausting air and water:the pressure or gravity of the pipework cause the valve opened, quickly exhaust air and water,and shorten heating-up time.
2.2 Steam-resistance: the steam rushing into valve cavity cause bimetalic element to bend and generate heating tension, and overcome the pipe pressure to shut off the ball.
The heating tension changes according to the corresponding saturated steam curve. Therefore, it can be effectively work within its pressure range.
2.3 Discharge condensed water: the condensed water gradually reduces the heating tension of the bimetalic elements, making the discharge-hole gradually open, so the condensed watercan be discharged unblocked and unimpeded.
2.4 Function as check valve: the valve ball can produce backflow in the pipeline, so it can immediately close discharge-hole, without any additional device.

Flow rate chart

Working pressure difference  Mpa
Working pressure difference Mpa

Main Connective Dimensions

Type DN(mm) Nominal Diameter Dimensions
L H H1
TSF-1/2/3 15 110 130 35
20 110 130 35
25 110 130 35
SF-1/2/3 15 155 170 45
20 155 170 45
25 155 170 45

Material for Main Parts

Name of Part Material
valve Body Carbon Steel
Bonnet Carbon Steel
Gasket F304 Flexible Graphite
Valve Core Components Stainless Steel
Seal Surface of Discharge-hole Overlaying Hard Alloy
Filtering Net Stainless Steel

Main External and Connecting Dimensions

Type DN(mm) Nominal Diameter Dimensions
L H D D1 D2 b f Z-фd
SF-1/2/3-GF 15 230 180 95 65 45 14 2 4-ф14
20 230 180 105 75 55 14 2 4-ф14
25 230 185 115 85 65 14 2 4-ф14
32 250 195 135 100 78 16 2 4-ф18
40 250 200 145 110 85 16 2 4-ф18
50 250 208 160 125 100 16 2 4-ф18
TSF-1/2/3-GF 15 210 140 95 65 45 14 2 4-ф14
20 210 145 105 75 55 14 2 4-ф14
25 210 150 115 85 65 14 2 4-ф14
